PE14EO Features ◎ Supply power to IP network surveillance cameras through Cat5 Ethernet cable (PoE); ◎ Compatible...
Vendor: HIMAX
SKU: PE14EO
Availability: In Stock
Product Type: PoE Extender
G$19,800.00
G$19,800.00
Subtotal: G$19,800.00
10 customers are viewing this product
Output PoE Extender

Output PoE Extender

G$19,800.00
Output PoE Extender
Output PoE Extender
Output PoE Extender

Output PoE Extender

G$19,800.00
Description

PE14EO

Features
  • ◎ Supply power to IP network surveillance cameras through Cat5 Ethernet cable (PoE);
  • ◎ Compatible with IEEE 802.3af/at PSE devices;
  • ◎ Support 10/100M data transmission through RJ45 port;
  • ◎ Auto-negotiation and auto-MDIX fast Ethernet RJ45 port;
  • ◎ Both mid-span (4/5+, 7/8- ) and end-span (1/2+, 3/6- );
  • ◎ IEEE 802.3af; IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.3af DTE Power via MDI;
  • ◎ 100Base-TX: Cat5 UTP (≤100 meters);
  • ◎ Store-And-Forward architecture;
  • ◎ Input: 1x RJ45 PoE ports; Output: 4x RJ45 PoE ports;, Total Power Output is 30W for PoE Extender
  • ◎ Front-end receiving and Back-end supply power

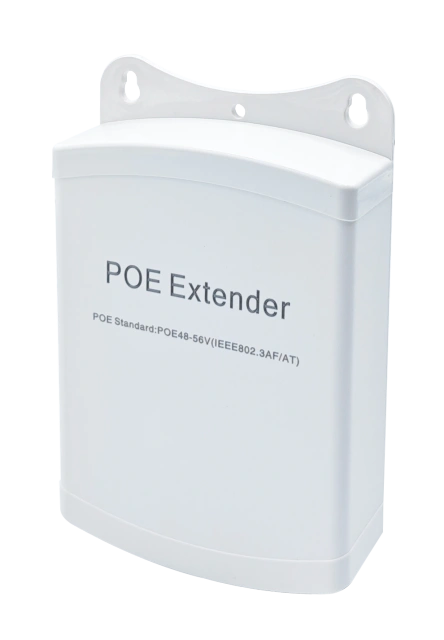

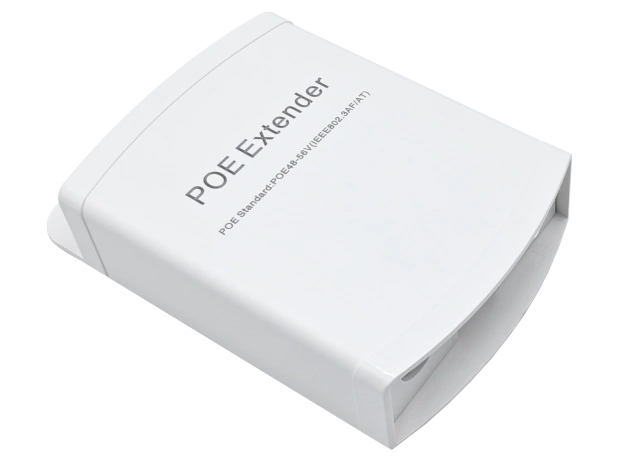

Product Name IP66 waterproof 100M 4 port POE Extender Description Input: 1*100M POE RJ45 port ; Output:4*100M POE RJ45 Port
Network Protocols and Standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASET
IEEE 802.3x Flow Control
IEEE 802.3af DTE Power via MDI
IEEE 802.3af/at
Network Medium Cat5 or more UTP (≤100 meter)
Backplane Bandwidth 0.6Gbps Forwarding Way Store-And-Forward architecture MAC Address Table Size 1K
Port Description 1x RJ45 PoE input port; 2x RJ45 PoE output ports PoE Features IEEE802.3af/at
Power over Ethernet, 15.4W/30W(IEEE802.3af/at)
Mid-span (4/5+, 7/8- ), end-span (1/2+, 3/6-)
LED Indicator Status Power; Network; PoE working status Dimension/Weight
Whole equipment Dimension (LxWxH): 98X155X35mm;
Whole box Dimension (LxWxH): 480X395X500mm;
Environment
Operating temperature: -20 to 55° C
Storage temperature: -20 to 75°C
Working Humidity: 10%～90%, non-condensing
Safety CE Mark, commercial, FCC Class, RoHS
Warranty 1-year warranty
Package List POE Extender, User Guide, Warranty Card
