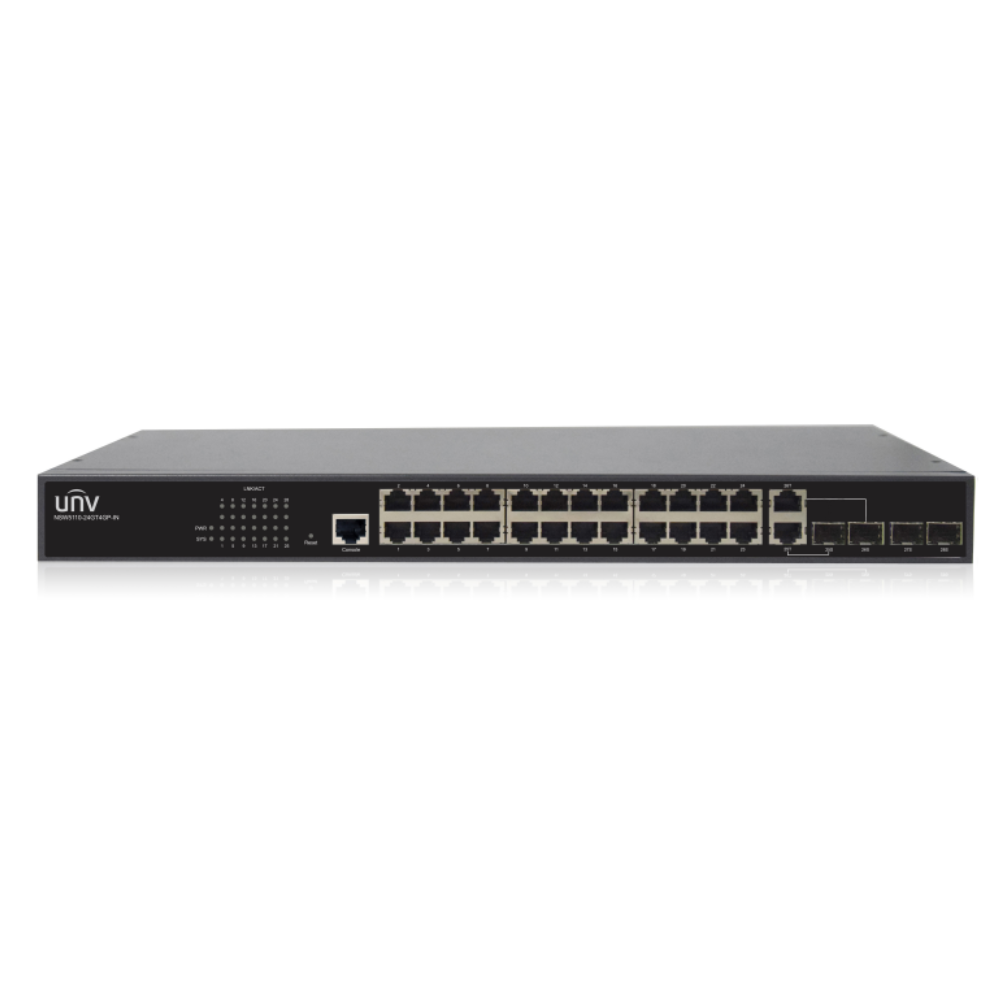

24 Port POE Ethernet Switch

NSW5110-24GT4GP-IN Ethernet Switch Support RJ45 Auto-MDI/MDIX Flow Control for Full Duplex operation and back pressure for Half...
Vendor: UNIVIEW
SKU: NSW5110-24GT4GP-IN
Availability: Out Of Stock
Product Type: Network Switch
G$88,900.00
G$88,900.00
Subtotal: G$88,900.00
10 customers are viewing this product
24 Port POE Ethernet Switch

24 Port POE Ethernet Switch

G$88,900.00

24 Port POE Ethernet Switch

G$88,900.00

NSW5110-24GT4GP-IN

Ethernet Switch
  • Support RJ45 Auto-MDI/MDIX
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
  • Supports a abundant lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies
  • Ethernet    Support frame format: Ethernet II, Support Gigabit SFP,
    Support flow control, Support line order (MDIX/MDI),
    Support link aggregation,
    Support Jumbo Frame Size 9K,
    Support port rate adjustment,
    Auto, 10M full/half duplex, 100M full/half duplex, 1000M full/half duplex
  • IEEE802.1d STP    Support IEEE802.1d STP
  • IEEE802.1w RSTP    Support IEEE802.1w RSTP
  • MSTP    Support standard 802.1s MSTP,
    Support 64 MSTP instances
  • STP Optional Features    Support port fast,
    Support BPDU filter,
    Support BPDU guard,
    Support hello-time,
    Support max age,
    Support forward delay,
    Support max hops,
    Support TC ignore
  • MSTP Port Optional Features    Support port fast,
    Support BPDU filter,
    Support BPDU guard,
    Support TC guard,
    Support TC filter,
    Support Auto edge,
    Support TC protection,
    Support compatibility mode
  • AP    Support Flow-Balance Methoddst-ip Destination IP address; dst-mac Destination MAC address; src-dst-ip Source and destination IP address; src-dst-mac Source and destination MAC address; src-ip Source IP address; src-mac Source MAC address,
    Support AP member port that is included in each AP.
  • Storm Control
    Support multicast storm control, Support control granularity (percentage and kbps are values for 64-byte datagram) 64 kbps, Support broadcast storm control,
    Support unicast storm control
  • Mirroring    Support Many-to-one mirror,
    Support Stream-based mirroring,
    Support number of mirror groups 4
  • VLAN    Support whether to allow VLAN 1 to be deleted on the trunk port,
    Support port based VLAN,
    Support GVRP,
    Support the nuber of VLAN that can support be created 4094,
    support Mac-VLAN,
    Support Subnet-VLAN,
    Support Protocol VLAN,
    Support VLAN maps
  • MAC Address    Support gentries MAC address numbers 8K,
    Support static MAC address numbers 1024,
    Support filtering MAC address numbers 1024,
    Support check and delete address table,
    Support filtering address,
    Support static address and dynamic learning address
  • LLDP    Support LLDP
  • ONVIF    Support ONVIF detect,
    Support ONVIF server
  • IGMP Snooping    Support IGMP snooping groups,
    Support IGMP V1, V2 snooping,
    Support source IP check,
    Support multicast policy and filtering,
    Support IGMP fast Leave
  • Port Limit    Support egress speed limit granularity,
    Support Ingress speed limit,
    Support egress speed limit
  • ARP    Support Anti-ARP gateway spoofing,
    Support filtering IP port,
    Support free ARP protection,
    Support source MAC check, Support ARP Detection,
    Support IP and Mac static binding,
    Support ARP trust port
  • Network Tool    Support Ping, Support traceroute
  • ACE Capacities    Support the input direction is associated with the physical port
  • ACL    Support IP standard ACL,
    Support IP extended ACL,
    Support professional ACL,
    Support Mac extended ACL,
    Support global ACL,
    Support Time-range ACL
  • QoS    Support QoS hardware queues,
    Support determine the exit queue according to 802.1p, DSCP, port,
    Support Stream-based 802.1p Re-marking,
    Support Stream-based queue maps,
    Support SP,
    Support WRR,
    Support RR,
    Support WFQ
  • Port Security    Support Mac filtering time,
    Support White-list data,
    Support clear Mac address table,
    Support Mac address binding,
    Support max Mac numbers settings,
    Support blacklist data,
    Support violation mode
  • Port Isolation    Support
  • LOOPBACK    Support
  • DAI    Support software DAI entries
  • SNMP    Supporting version (SNMPV1, V2c, V3)
  • Web Management    Support HTTP access
  • RMON    Support RMON (1, 2, 3, 9)
  • System Upgrade    Support system upgrade or page upgrade via TFTP
  • Save Configuration    Support save configuration
  • Configuration Management    Support Import, export, backup configuration, restore factory configuration
  • Syslog/Debug    Support Syslog/Debug
  • Security Function    Support
  • Basic Characteristics    Support login authentication (password, none)
  • Password Security    Support static password encryption transmission, storage,
    Support strong password and password minimum length check
  • Radius    Support radius,
    Support specify multiple groups of servers IP
  • Tacacs+    Support specify multiple groups of servers IP , Support Tacacs+
  • SSH    Support SSHv2.0
  • Anti-dos Attack    Support Interrupting land attack packets and illegal TCP packets
  • Dot1x    Support 802.1X,
    Support port base,
    Support Mac base,
    Support MAB,
    Support multiple account switching
    Defense Gateway ARP Spoofing    Support defense gateway ARP spoofing
    IP Source Guard    Support IP source guard
    CPP    Support hardware CPP
  • ARP Check  Support leverage IP+MAC data binding of IP source guard, Support IP + MAC data binding using DHCP snooping,
    Support leverage 1X IP+MAC data binding,
    Support trusted ARP
  • DHCP Relay    Support allow configuration of the number of servers
  • DHCP Snooping    Support Option82,
    Support trust port configuration,
    Support IP, MAC binding table(IP Source Guard),
    Support bind to logical ports (including physical interfaces),
    Support software binding database capacity,
    Support bind to VLAN
  • DHCP Server    Support binding table configuration,
    Support address pool configuration
  • Telnet    Support Telnet,
    Support maximum number of connections
  • TFTP    Support TFTP client
  • FTP    Support FTP server, Support FTP client
  • ERPS    Support delete ERPS loop,
    Support ERPS loop configuration,
    Support ERPS time configuration
  • Static And Dynamic LACP Link Aggregation    Support LACP configuration, Support Load-Balance Method; dst-ip Destination IP addressdst-mac Destination MAC address; src-dst-ip Source and destination IP address; src-dst-mac Source and destination MAC address; src-ip Source IP address; src-mac Source MAC address,
    Support link aggregation groups,
    Support max link aggregation numbers of each link aggregation group,
    Support link aggregation port configuration
  • Hardware Specification
  • Ports Type    24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports
  • Standards    IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x
  • Switching capacity    56 Gbps
  • Forwarding performance    41.66Mpps
  • Packet Buffer    4 M bit
  • MAC    8K
  • Dimensions (W×D×H)    440 × 208 × 44 mm
  • Weight    <3.6 kg
  • Power supply    AC: 100-240 V, 50/60 Hz
  • Storage Temperature    -40 ℃ to 70 ℃
  • Operating temperature    0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Operating humidity    10%~90% (non-condensing)
  • Storage humidity    5%~90% (non-condensing)
  • Indicator    POWER Steady on: AC input is normal, POWER Off: No AC input, LINK/ACT Steady on: Linked, LINK/AC Green light: connected to 1000 Mbps devices, LINK/ACT Flashing: Transmitting data
  • Mean Time Between Failure (MTBF)    >50000 hours
