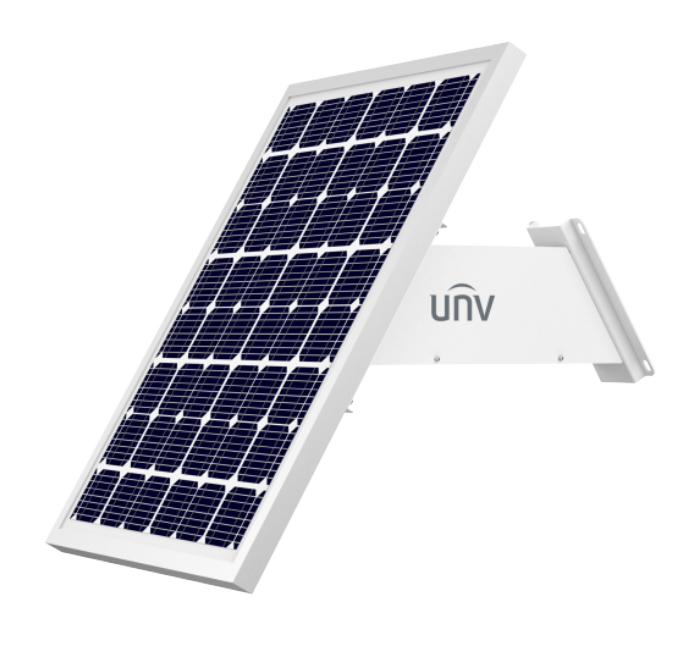

SLR-B320P60 320Wh/60W Solar Power System(Heating,Operation) Modular design for easy battery assembly, hanging design for easy solar panel...
Vendor: UNIVIEW
SKU: SLR-B320P60
Availability: Out Of Stock
Product Type: Solar Power Supply
G$88,900.00
G$88,900.00
Subtotal: G$88,900.00
10 customers are viewing this product
Solar Power System 320Wh

Solar Power System 320Wh

G$88,900.00

Solar Power System 320Wh

G$88,900.00

SLR-B320P60

320Wh/60W Solar Power System(Heating,Operation)
  • Modular design for easy battery assembly, hanging design for easy solar panel installation.
  • Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
  • Built in self developed high efficiency solar controller realizes faster charging.
  • Visual status indicator allows for easy understanding of the product’s operating status.
  • Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
  • Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
  • Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
  • Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
  • High efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
  • High transmittance tempered glass and UV resistant EVA backsheet materials further improve the conversion efficiency of photovoltaic modules.
  • Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor environments.
  • Allows to overlay the battery percentage OSD on the camera’s live video.
  • Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.

Lithium Battery
  • Battery capacity    100 Ah
  • Rated energy    320 Wh
  • Limited charge voltage    7 V
  • Output voltage    9 V to 12.6 V
  • Maximum output current    2 A
  • Input interface type    4-pin quick connector (for battery switch)
  • Output interface type    DC 12 V circular connector
  • RS485    Support
  • Dimensions    419.2 × 118 × 336.5 mm
  • Protection function    High/low temperature protection, overcharge protection, undervoltage protection

Solar Panel
  • Peak power    60 W
  • Operating voltage    4.5 V
  • Operating current    13.33 A
  • Open circuit voltage    5.4 V
  • Short circuit current    14.66 A
  • Cell conversion efficiency    ≥ 22%
  • Output interface type    4-pin quick connector (for battery switch)
  • Dimensions    765 × 395 × 25 mm

Operation and Maintenance Module
  • Open circuit voltage    12 V
  • Typical power consumption    0.84 W
  • Maximum power consumption    2 W
  • Input interface type    DC 12 V circular connector
  • RS485    Support
  • Reset button    Support
  • Indicator    Blinking green: Normal operation; Steady red: Network error
  • Dimensions    90 × 90 × 38.3 mm
  • Ingress protection    IPX5
  • Accessory    One-to-two power cable

Specification
  • Operating temperature    -20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge)
  • Weight    11.3KG

General
  • Suitable pole diameter    67mm to 110 mm
