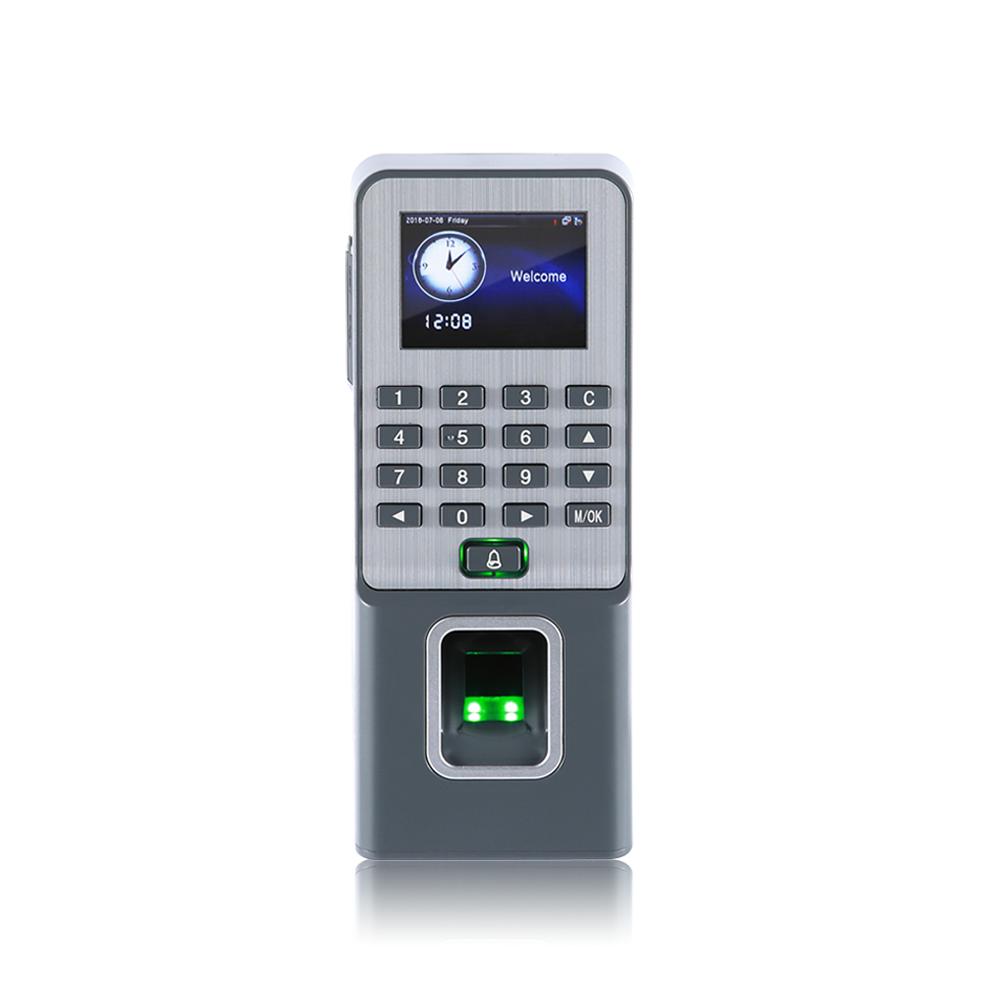

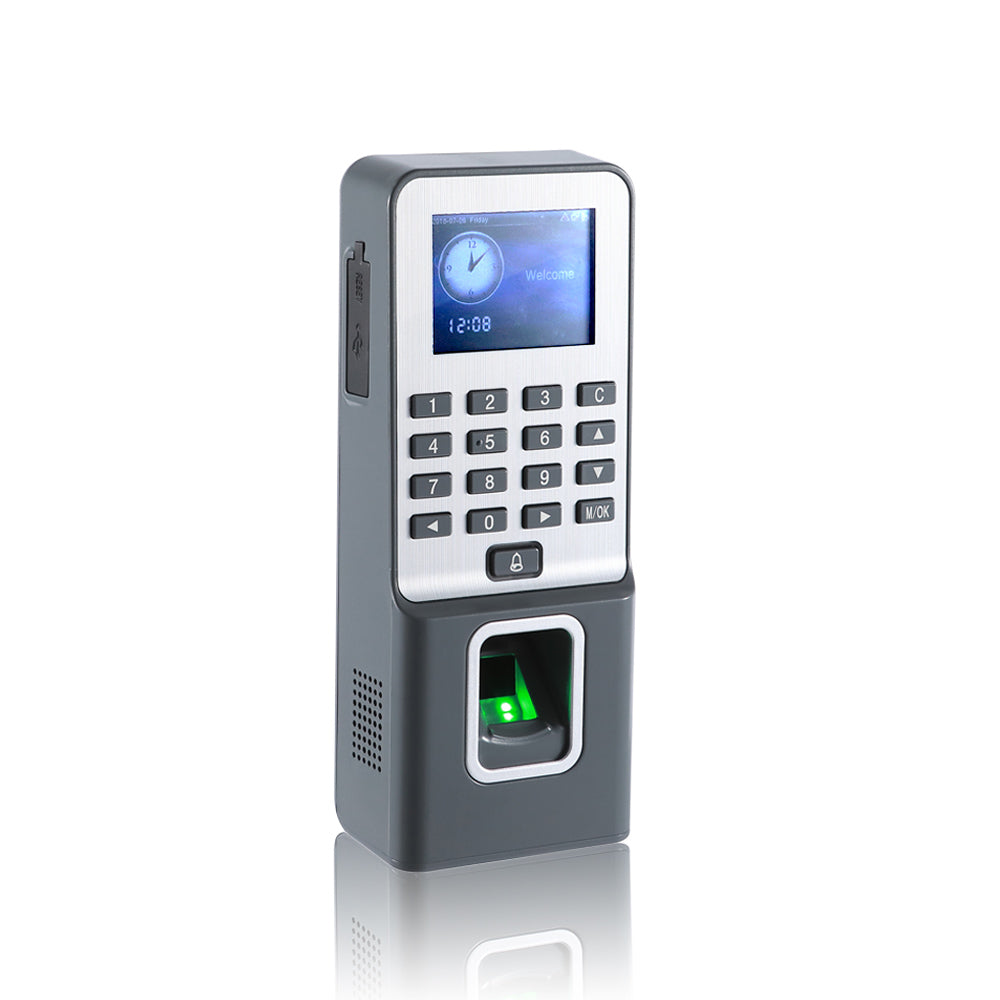

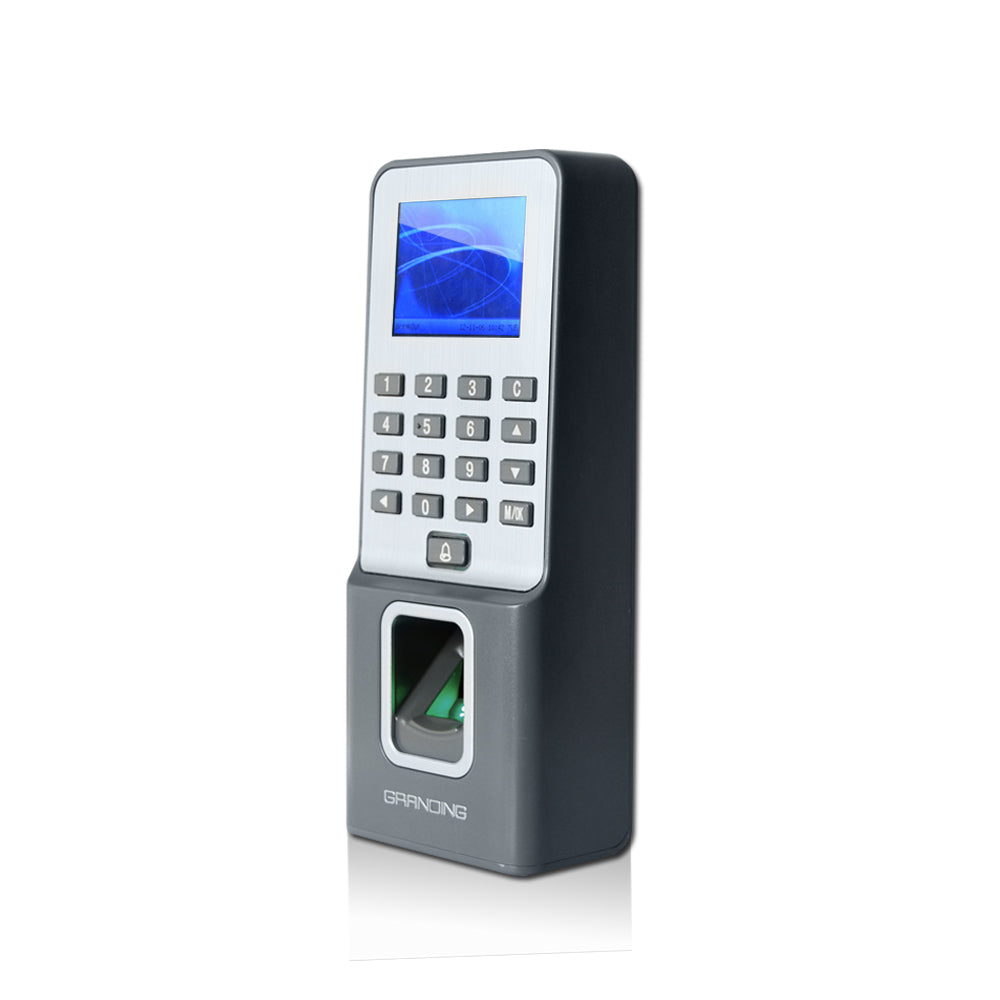

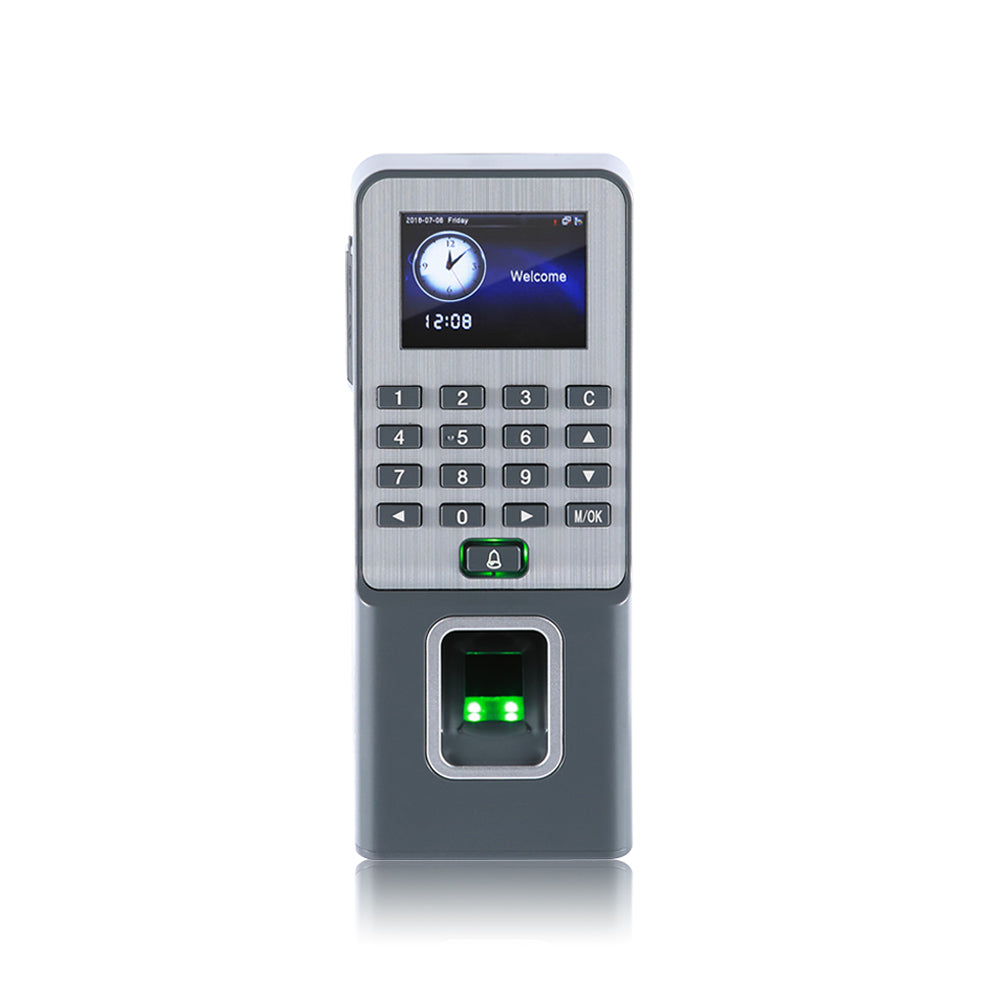

F09 Granding Fingeprint Time Attendance and Access Control System
The F09 is professional fingerprint access control system support 50 Time Zones, wired door bell connection, wiegand in and out, support to connect external reader, with slim size, and high performance.
- Latest fingerprint algorithm with friendly user interface.
- Support TCP/IP, RS232/485, USB and wiegand in/output.
- Special user-role and fingerprint expired management.

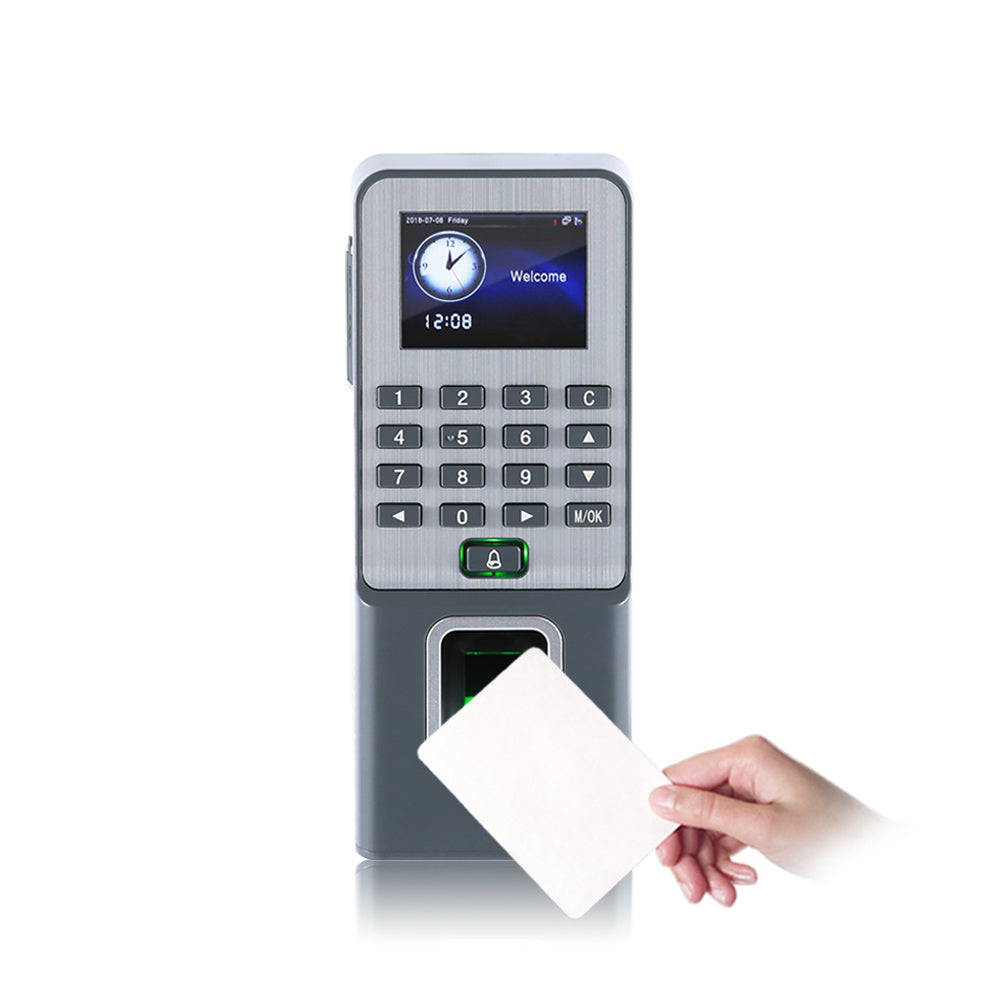

- ID card /MIFARE card or HID card can be customized.
- Up to 66 user-defined schedule bell.
- Connect with slave reader easily.
- Easy to connect with Barcode reader.
- LCD Display 2.4” TFT LCD color screen
- Speaker Voice prompt (language can be selected)
- Capacity Fingerprint: 4,000;Logs: 100,000; Card: 10,000 (optional)
- Verification Verification speed (1:1) ≤ 0.5S; Identification speed (1:1) ≤ 1S
- Identification FRR ≤ 0.01%; FAR ≤ 0.001%
- Attendance status Check in/out, Break in/out, Overtime in/out
- Communications TCP/IP, RS232/485, USB Host, Wiegand in/out
- Language Multi language, more than 40 languages can be selected
- Environment Operation temperature: 0°C-45°C; Operation humidity: 20%-80%
- Power Supply 110/220 VAC-12VDC (PS-3A is optional item)
- Package data
Machine size: 19(L)*7.8(W)*4(H)cm - Unit packing: 25*15*9cm
- Carton packing: 53*33*45cm
- Real weight: 0.95kg
- Volume weight: 1.0kg
- Function support
Built-in relay, 50 time zones, 99 groups, 10 combinations, Alarm, Door senor, Door lock, DST, Workcode, Webserver, Photo-ID, Schedule bell, SMS, Auto-status, Anti-passback, Log query, 9 PIN user ID, Multi-verify, ADMS, T9, External siren - Customize Function
ID / Mifare / HID card reader, Print function, Barcode reader
