Description

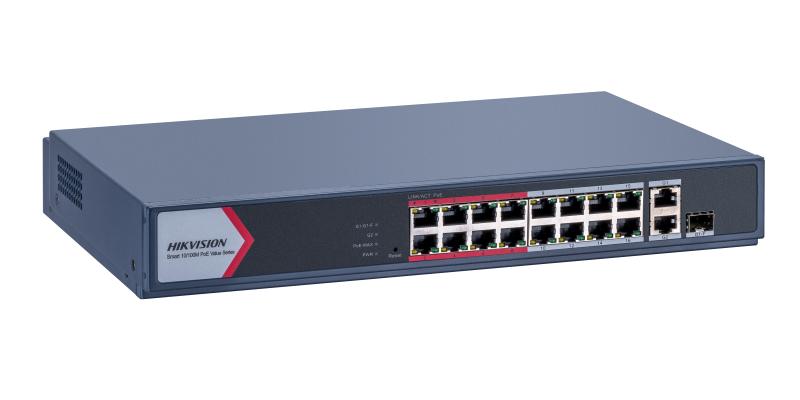

16 Port Fast Ethernet Smart POE Switch

  • 16 × 10/100M PoE ports, 1 × Gigabit RJ45 port,1 × Gigabit combo
  • Total PoE Power Budget 130 W
  • Support 802.1Q VLAN
  • Support PoE watchdog to detect and restart the cameras that do not respond
  • Support STP/RSTP Loop prevention
  • Support cable detection to locate failure
  • Up to 300 m Long Range PoE Transmission
  • 6 kV Surge Protection
  • General
  • ShellMetal material
  • Net Weight1.8 kg (4.0 lb)
  • Gross Weight3.0 kg (6.6 lb)
  • Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
  • Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100-240 VAC, 50/60 Hz, Max. 3 A
  • Installation ModeRack (equipped with mounting ears)
  • Max. Power Consumption150 W
  • Power Consumption in Idle20 W
  • Surge Protection6 kV
  • Network Parameters
  • Ports16 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit combo
  • MAC Address Table16 K
  • Switching Capacity

    Whole-Device Performance: 9.2 Gbps

    Port Performance: 7.2 Gbps

  • Packet Forwarding Rate

    Whole-Device Performance: 6.84 Mpps

    Port Performance: 5.36 Mpps

  • Internal Cache4 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at
  • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE PortPoE: Ports 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget130 W
  • Software Function
  • Long Range

    Ports 1 to 16: up to 300 m.

    Long range performance may vary depend on camera model or cable condition.

  • VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
  • Port Isolation

    Ports 1 to 16: port isolation mode to improve network security

    Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

  • PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
  • Link Aggregation

    Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

    Support static link aggregation.

    Support 1 aggregation group(s).

  • Loop Prevention

    Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

    Support 802.1D STP.

    Suppport 802.1w RSTP.

  • VLAN

    VLAN is used for network scale planning and network health improvement.

    Support 802.1Q.

    Configurable VLAN ID from 1-4094.

    Support Trunk, Access port mode.

    Support Max. 4094 VLAN.

  • HPP

    Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

    1. Display the port rate.

    2. Display the port bandwidth utilization rate.

    3. Display the PoE power usage.

    4. Display topology information.

    5. Display the alarm status.

    6. Restart ports and devices.

    7. Enable port long-rage mode.

    8. Remotely upgrade the device.

  • System Maintenance

    Support device management via web.

    Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

    Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

    Support management via Hik-Central Pro.

    Support remote management via Hik-Partner Pro.

    Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

    Supports 802.1ab LLDP for peer device discovery.

    Support port mirroring for fault locating.

  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
